R2L2

  • R2L2
  • R2L2

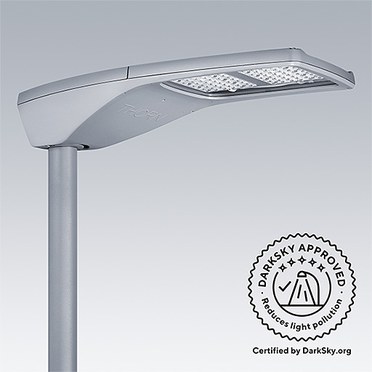

A complete road lantern family at the forefront of LED technology to offer excellent lighting performance and cover all applications

  • Comprehensive range available in three sizes with extensive optical, lumen and light distribution choice for all road applications
  • Efficient (up to 153lm/W) R-PEC optic offering 15 types of light distribution for precise light placement with no waste light
  • Maximises energy savings with a wide range of intelligent lighting control solutions from stand alone dimming to fully remote control via central monitoring system
  • Attractive, universal and integrated spigot offering flexibility through top and side entry as well as tilt adjustment

Materials and Finish

Housing, canopies, spigot: die-cast aluminium with light grey 150 sanded textured (close to RAL9006)
Glass: 4mm thick (XS: 5mm thick)
Screws: stainless steel

Powder coating texturised light grey as standard. Other RAL or AKZO colours available on request. Other special treatment on request.

Installation and Mounting

Post-top mounting: Ø60-76mm
Side-entry mounting: Ø48-60mm or Ø32-42-48-60mm (CL1 as standard)
Operating temperature: -25°C < Ta < +35°C
Suitable for use up to +50°C through the use of heat regulation system
Recommended mounting height: 4m to 14m
Adjustable tilt angle side: 0°/ -5°/ -10°/ -15°
Adjustable tilt angle top 0°/ +5°/ +10°

Specification

To specify state:
Three sizes with extensive optical, lumen and light distribution choice for all road applications. Efficient (up to 153lm/W) R-PEC optic with 15 light distributions for precise light placement with minimum waste light. Wide range of intelligent lighting control solutions from stand alone dimming to fully remote control via central monitoring system. Attractive, universal and integrated spigot offering flexibility through top and side entry as well as tilt adjustment up to 15°. Easy to fit back and front louvres which can be fitted retrospectively for extra light control and comfort. Four spare parts defined: canopy, glass enclosure, gear tray incl. driver, LED cover (incl. LED module and lenses).
As Thorn R2L2.

New Product
LumExpress Product
eControl Product

R2L2 Extra small, Narrow road optic

R2L2 Small, Narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
R2L2 S 12L35 NR 740 CL1152049RLS1235NRLED9.0896268397
R2L2 S 12L50 NR 740 CL1202826RLS1250NRLED9.0896268405
R2L2 S 12L70 NR 740 CL1283803RLS1270NRLED9.0896268418
R2L2 S 24L35 NR 740 CL1284089RLS2435NRLED9.5496268430
R2L2 S 24L50 NR 740 CL1385632RLS2450NRLED9.5496268440
R2L2 S 24L70 NR 740 CL1537561RLS2470NRLED9.5496268453
R2L2 S 36L35 NR 740 CL1406116RLS3635NRLED9.5196268464
R2L2 S 36L50 NR 740 CL1558413RLS3650NRLED9.5196268474
R2L2 S 36L70 NR 740 CL17811250RLS3670NRLED9.5196268487
R2L2 S 48L35 NR 740 CL1508140RLS4835NRLED9.5696268498
R2L2 S 48L50 NR L740 CL17211170RLS4850NRLED9.5696266286
R2L2 S 48L70 NR L740 CL110114898RLS4870NRLED9.9796266347

R2L2 Small, Wide street optic

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
R2L2 S 12L35 WS 740 CL1152036LED9.0896268401
R2L2 S 12L50 WS 740 CL1202807LED9.0896268411
R2L2 S 12L70 WS 740 CL1283778LED9.0896268425
R2L2 S 24L35 WS 740 CL1284062LED9.5496268436
R2L2 S 24L50 WS 740 CL1385594LED9.5496268446
R2L2 S 24L70 WS 740 CL1537510LED9.5496268459
R2L2 S 36L35 WS 740 CL1406076LED9.5196268470
R2L2 S 36L50 WS 740 CL1558357RLS3650WSLED9.5196268480
R2L2 S 36L70 WS 740 CL17811175LED9.5196268493
R2L2 S 48L35 WS 740 CL1508086LED9.5696268504
R2L2 S 48L50 WS L740 CL17211095RLS4850WSLED9.5696266314
R2L2 S 48L70 WS L740 CL110114799RLS4870WSLED9.9796266358

R2L2 Small, Wide street optic, configured products

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
R2L2 S 12L35 WS 740 CL1 CLO PM152036LED9.1696272499
R2L2 S 24L50 WS 740 CL1 N3385594LED9.6696268448

R2L2 Small, Wide street comfort optic

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
R2L2 S 12L35 WSC 740 CL1152006LED9.0896268402
R2L2 S 12L50 WSC 740 CL1202766LED9.0896268414
R2L2 S 12L70 WSC 740 CL1283723LED9.0896268426
R2L2 S 24L35 WSC 740 CL1284002LED9.5496268437
R2L2 S 24L50 WSC 740 CL1385513LED9.5496268449
R2L2 S 24L70 WSC 740 CL1537401LED9.5496268460
R2L2 S 36L35 WSC 740 CL1405987LED9.5196268471
R2L2 S 36L50 WSC 740 CL1558235LED9.5196268483
R2L2 S 36L70 WSC 740 CL17811013LED9.5196268494
R2L2 S 48L35 WSC 740 CL1507968LED9.5696268505
R2L2 S 48L50 WSC L740 CL17210934RLS4850WSCLED9.5696266324
R2L2 S 48L70 WSC L740 CL110114584RLS4870WSCLED9.9796266369

R2L2 Small, Wet road optic

R2L2 Small, Road comfort optic

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
R2L2 S 12L35 RC 740 CL1152072LED9.0896268398
R2L2 S 12L50 RC 740 CL1202857LED9.0896268406
R2L2 S 12L70 RC 740 CL1283846LED9.0896268420
R2L2 S 24L35 RC 740 CL1284134LED9.5496268431
R2L2 S 24L50 RC 740 CL1385694LED9.5496268441
R2L2 S 24L70 RC 740 CL1537645LED9.5496268454
R2L2 S 36L35 RC 740 CL1406184LED9.5196268465
R2L2 S 36L50 RC 740 CL1558506LED9.5196268475
R2L2 S 36L70 RC 740 CL17811375LED9.5196268488
R2L2 S 48L35 RC 740 CL1508231LED9.5696268499
R2L2 S 48L50 RC L740 CL17211294RLS4850RCLED9.5696266298
R2L2 S 48L70 RC L740 CL110115064RLS4870RCLED9.9796266353

R2L2 Small, Wide road optic

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
R2L2 S 12L35 WR 740 CL1152052LED9.0896268400
R2L2 S 12L50 WR 740 CL1202829LED9.0896268410
R2L2 S 12L70 WR 740 CL1283808LED9.0896268423
R2L2 S 24L35 WR 740 CL1284093LED9.5496268434
R2L2 S 24L50 WR 740 CL1385638LED9.5496268445
R2L2 S 24L70 WR 740 CL1537569LED9.5496268457
R2L2 S 36L35 WR 740 CL1406123LED9.5196268468
R2L2 S 36L50 WR 740 CL1558422LED9.5196268479
R2L2 S 36L70 WR 740 CL17811263LED9.5196268491
R2L2 S 48L35 WR 740 CL1508149LED9.5696268502
R2L2 S 48L50 WR L740 CL17211182RLS4850WRLED9.5696266308
R2L2 S 48L70 WR L740 CL110114915RLS4870WRLED9.9796266356

R2L2 Small, Extra wide street optic

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
R2L2 S 12L35 EWS 740 CL1152011LED9.0896268395
R2L2 S 12L50 EWS 740 CL1202773LED9.0896268403
R2L2 S 12L70 EWS 740 CL1283732LED9.0896268415
R2L2 S 24L35 EWS 740 CL1284012LED9.5496268427
R2L2 S 24L50 EWS 740 CL1385525LED9.5496268438
R2L2 S 24L70 EWS 740 CL1537418LED9.5496268450
R2L2 S 36L35 EWS 740 CL1406001LED9.5196268461
R2L2 S 36L50 EWS 740 CL1558254LED9.5196268472
R2L2 S 36L70 EWS 740 CL17811038LED9.5196268484
R2L2 S 48L35 EWS 740 CL1507986LED9.5696268495
R2L2 S 48L50 EWS 740 CL17210959RLS4850EWSLED9.5696268506
R2L2 S 48L70 EWS 740 CL110114617LED9.9796268513

R2L2 Small, Extra wide street comfort optic

R2L2 Medium, Narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
R2L2 M 60L35 NR 740 CL16310198RLM6035NRLED12.8696268295
R2L2 M 60L35-740 NR BPS CL1 GY6310198LED13.4096630708
R2L2 M 60L50 NR L740 CL18914016RLM6050NRLED13.2696266416
R2L2 M 60L50-740 NR BPS CL1 GY8914016LED13.4096630709
R2L2 M 60L70-740 NR BPS CL1 GY12618750LED13.4096630710
R2L2 M 72L35 NR 740 CL17512215RLM7235NRLED12.8396268324
R2L2 M 72L35-740 NR BPS CL1 GY7512215LED13.4096630711
R2L2 M 72L50 NR L740 CL110716766RLM7250NRLED13.2496266504
R2L2 M 72L50-740 NR BPS CL1 GY10716766LED13.4096630712
R2L2 M 72L70-740 NR BPS CL1 GY15022374LED13.4096630713
R2L2 M 84L35-740 NR BPS CL1 GY8614223LED13.4196630714
R2L2 M 84L50 NR 740 CL112319493RLM8450NRLED13.2996266607
R2L2 M 84L50-740 NR BPS CL1 GY12319493LED13.4196630715
R2L2 M 84L70-740 NR BPS CL1 GY17625943LED13.4196630716
R2L2 M 96L35-740 NR BPS CL1 GY9816274LED13.6396630717
R2L2 M 96L50-740 NR BPS CL1 GY14122312LED13.6396630718
R2L2 M 96L50V2 NR 740 CL114122312RLM9650NRLED13.6496266721
R2L2 M 96L70 NR 740 CL120129724RLM9670NRLED14.4596266760
R2L2 M 96L70-740 NR BPS CL1 GY20129724LED13.6396630719
R2L2 M 96L90 NR 740 CL126236344LED14.5096274635
R2L2 M 96L90-740 NR BPS CL1 GY26236344LED13.6396630720

R2L2 Medium, Wide street optic

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
R2L2 M 60L35 WS 740 CL16310130LED12.8696268303
R2L2 M 60L50 WS L740 CL18913923RLM6050WSLED13.2696266432
R2L2 M 60L70 WS L740 CL112618625RLM6070WSLED13.2696266466
R2L2 M 72L35 WS 740 CL17512133LED12.8396268332
R2L2 M 72L50 WS L740 CL110716654RLM7250WSLED13.2496266523
R2L2 M 72L70V2 WS L740 CL115022224RLM7270WSLED13.5396266559
R2L2 M 84L50 WS 740 CL112319363RLM8450WSLED13.2996266635
R2L2 M 84L70 WS 740 CL117625770RLM8470WSLED13.5896266671
R2L2 M 96L35 WS 740 CL19816165RLM9635WSLED13.3496266705
R2L2 M 96L70 WS 740 CL120129526RLM9670WSLED14.4596266779

R2L2 Medium, Wide street comfort optic

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
R2L2 M 60L70 WSC L740 CL112618354RLM6070WSCLED13.2696266474
R2L2 M 84L50 WSC 740 CL112319081RLM8450WSCLED13.2996266643
R2L2 M 96L35 WSC 740 CL19815930RLM9635WSCLED13.3496266713

R2L2 Medium, Wet road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
R2L2 M 60L50 RWT 740 CL18914188LED13.2696268309
R2L2 M 96L50 RWT 740 CL114122584LED13.6496268385

R2L2 Medium, Road comfort optic

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
R2L2 M 60L35 RC 740 CL16310311LED12.8696268297
R2L2 M 60L50 RC L740 CL18914172RLM6050RCLED13.2696266419
R2L2 M 60L70 RC L740 CL112618959RLM6070RCLED13.2696266453
R2L2 M 72L35 RC 740 CL17512351LED12.8396268326
R2L2 M 84L50 RC 740 CL112319709RLM8450RCLED13.2996266615
R2L2 M 96L35 RC 740 CL19816455RLM9635RCLED13.3496266692
R2L2 M 96L50V2 RC 740 CL114122560RLM9650RCLED13.6496266727
R2L2 M 96L70 RC 740 CL120130054RLM9670RCLED14.4596266763

R2L2 Medium, Wide road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
R2L2 M 60L35 WR 740 CL16310209LED12.8696268301
R2L2 M 60L70 WR L740 CL112618771LED13.2696266458
R2L2 M 72L35 WR 740 CL17512228LED12.8396268330
R2L2 M 72L50 WR L740 CL110716784LED13.2496266515
R2L2 M 84L50 WR 740 CL112319514LED13.2996266627
R2L2 M 96L70 WR 740 CL120129757LED14.4596266770
R2L2 M 96L90 WR 740 CL126236385LED14.5096274639

R2L2 Medium, Extra wide street optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
R2L2 M 60L35 EWS 740 CL16310005LED12.8696268291
R2L2 M 60L50 EWS 740 CL18913752LED13.2696268305
R2L2 M 60L70 EWS 740 CL112618396LED13.2696268312
R2L2 M 72L35 EWS 740 CL17511984LED12.8396268320
R2L2 M 72L50 EWS 740 CL110716449LED13.2496268334
R2L2 M 84L70 EWS 740 CL117625453LED13.5896268365
R2L2 M 96L35 EWS 740 CL19815967LED13.3496268373
R2L2 M 96L70 EWS 740 CL120129162LED14.4596268388
R2L2 M 96L90 EWS 740 CL126235658LED14.5096274632
R2L2 M 96L90 EWS 740 CL226235658LED14.3096274643

R2L2 Medium, Extra wide road optic, configured products

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
R2L2 M 96L90 EWR 740 CL126235214LED14.5096274631

R2L2 Attachments

Description   Wt (kg)SAP Code
R2L2 M PAIR OF LOUVRES0.4496268851
R2L2 S PAIR OF LOUVRES0.4596268850
RX IK100.1096631361
RX Louvre front / back / side0.1096631362
