Isaro Pro

  • Isaro Pro

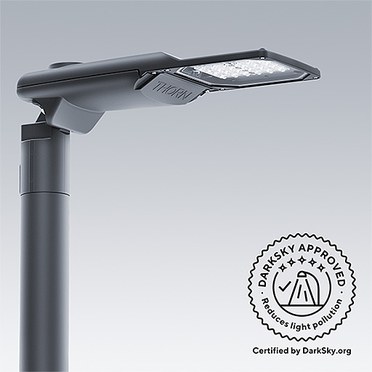

This robust and high-performance LED street lantern brings comfort and safety to any road or street

  • IDA Dark Sky Approved
  • *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures, +/- 10° maximum tilt only. Luminaires must be mounted as photometered.
  • Future proofing: upgrading of the Optic and Control Gear can be performed on site if required; CMS options can be incorporated /upgraded in the course of life with the 7 pin NEMA socket option; removable optic and gear assembly allows easy interchange
  • Easy clean design including flat glass optical cover and optimally sized smooth heat dissipation cover
  • Range of optics, tilt capability, tuneable flux and programmable driver facilitate optimisation of lighting design and minimisation of power consumption
  • Tool-less top opening and incorporation of Automatic Disconnect for easy, safe access and simple electrical testing or maintenance operations
  • OTHER OPTIONS ARE AVAILABLE (colour temperature, controls, mounting, colour...). See myProduct for configuration options

Materials and Finish

Suitable for C5 (standard corrosion class according to ISO 9223 : 2012) without additional coating.
Housing, canopies, spigot: die-cast aluminium EN AC-44300.
Version GY-S: Housing, canopies : light grey 150 sanded textured (close to RAL9006); spigot : non painted
Version ANT: Housing, canopies, spigot: texturized anthracite grey (close to RAL7043), Other RAL colours on request.
Glass: 5 mm thick
Fixings: stainless steel

Installation and Mounting

Suitable for mounting on top Ø76mm or Ø60mm (by ordering the correct version or adapter).
Suitable for mounting on side Ø60mm or Ø42mm (by ordering the correct version or adapter).
Variable tilting setting: 0° to +20° on post top mounting and -15° to +15° on lateral mounting, in 5° steps.
Cable gland for Ø8 to 12mm cable. Delivered ready to install, complete with factory fitted integral gear tray, all supplied in a single carton.

Specification

To specify state:
A state of the art, LED lighting lantern, addressing all minor road and street lighting applications. Thorn's rigorous focus on functionality needs and return on investment led to an easy to understand and service LED luminaire delivering performance and sustainability, thanks to its high quality of aluminium. It integrates the latest available technology of light source, gear and controls as an answer to the demand for energy savings and efficiency. Easy to understand, specify, install, maintain & control are all the concrete advantages offered by this rational led lighting solution ensuring the most optimised cost of ownership possible. Two spare parts defined: gear tray incl. driver, LED cover (incl. LED module, lenses and glass enclosure).
As Thorn Isaro Pro

New Product
LumExpress Product
eControl Product

Isaro Pro Small, Narrow road optic

Isaro Pro Medium, Narrow road optic

Isaro Pro Medium, Wide street optic

Isaro Pro Medium, Wide street comfort optic

Isaro Pro Medium, Wet road optic

Isaro Pro Medium, Road comfort optic

Isaro Pro Medium, Wide road optic

Isaro Pro Medium, Extra wide street optic

Isaro Pro Medium, Street comfort optic

Isaro Pro Medium, Extra wide street comfort optic

Isaro Pro Medium, Extra wide road optic

Isaro Pro Medium, Extensive street optic

Isaro Pro Medium, Staggered road optic

Isaro Pro accessories
