Steel Stepped Columns and Accessories
Floodlight brackets

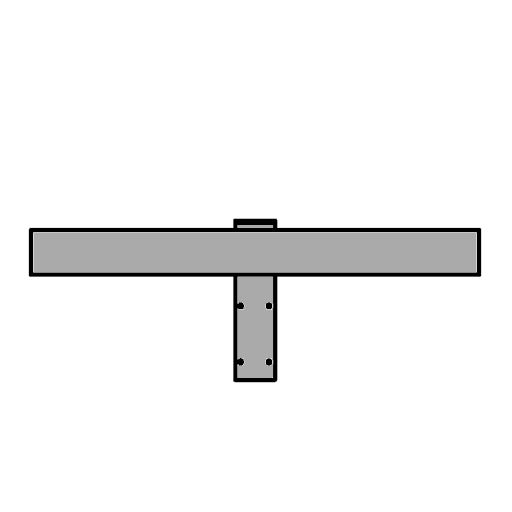

FLOOD BRAX2/4 1M STEP COL 3/4/5/6/8M*
Article number: 96632569
Mounting bracket
See other variants
Watchlist
Compare
Find your perfect lighting solution for your project in just a few steps
Where to buy
Technical Data
Light Distribution
Light Distribution
STD - standard
Physical Characteristics
Dimensions
42x42x1000 mm
Length
42 mm
Width
42 mm
Height
1000 mm
Weight
4.6 kg
Drawings
Dimensional sketch
Download the file
Downloads
Design Data
Datasheet
Family datasheet
Transfer to ecoCALC, VIVALDI, DALEC or HILITE
Handling
Dimensional sketch
786.59 kB
Product description
20.05 kB
FLOOD BRAX2/4 1M STEP COL 3/4/5/6/8M*
Twin 1000mm floodlighting bracket for stirrup mounting 2 or 4 floodlights Weight: 9.62 kg (approx) This bracket is suitable for use with the following columns: 96632725 : 3m stepped column, root mounted, Ø76mm top spigot 96632726 : 3m stepped column, flange mounted, Ø76mm top spigot 96632727 : 4m stepped column, root mounted, Ø76mm top spigot 96632728 : 4m stepped column, flange mounted, Ø76mm top spigot 96632555 : 5m stepped column, root mounted, Ø76mm top spigot 96632556 : 5m stepped column, flange mounted, Ø76mm top spigot 96632557 : 6m stepped column, root mounted, Ø76mm top spigot 96632558 : 6m stepped column, flange mounted, Ø76mm top spigot 96632559 : 8m stepped column, root mounted, Ø89mm shaft 96632560 : 8m stepped column, flange mounted, Ø89mm shaft Please note : Delivery charges will apply to this item.
