Olsys Area / OLSYS1 12L70-740 CL1 AREA A/S

96633540

Data Sheet

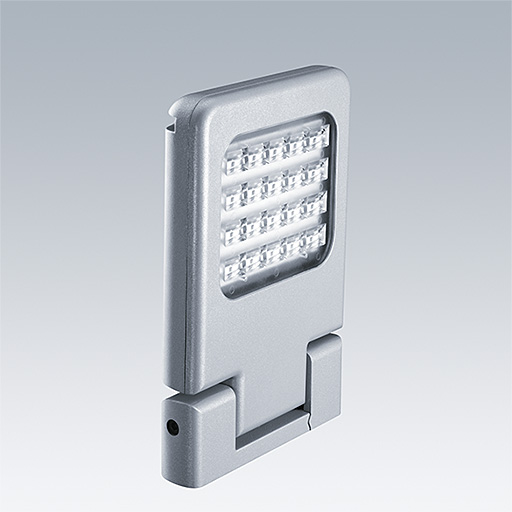

An LED floodlight with asymmetric distribution for area lighting applications. Electronic, fixed output control gear. Class I electrical, IP66, IK08. Body: die-cast aluminium (AS9U), powder coated silver-grey (RAL 9006). Enclosure: clear polycarbonate. Optics: polycarbonate. Supplied in one box, ready to install. Mounting attachments to be ordered separately. Complete with 4000K LED

ambient temperature: -30°C to +50°C

Dimensions: 330 x 225 x 59 mm
Luminaire input power: 28 W
Weight: 2.85 kg
Scx: 0.07 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3315 lm
  • Luminaire efficacy*:118 lm/W
  • Colour Rendering Index min.:70
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):4
  • Rated median useful life*:L90 50000 h at 25 °C
  • Ballast:1x EL2
  • Luminaire input power*:28 W
  • Dimming:Fixed output
  • LED
  • CE
  • ENEC
  • GLedReP
  • IK08
  • IP66
  • Coastal_C3
  • LLedReP
  • SC1
  • Ta=50°C
