Omega Pro 2 / OP2 3000-840 CKIT HX Q600

92919333

Data Sheet

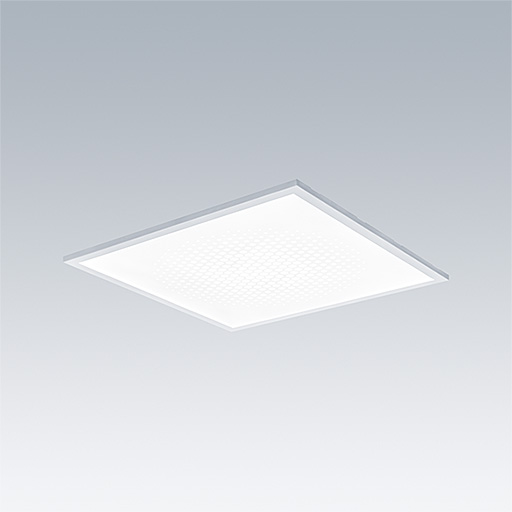

A recessed/surface/suspended, edge-lit LED luminaire. LED driver, Fixed output. Class II electrical (this product is not earthed), IP40_IP20, Impact strength: IK03. Body: steel sheet, finished white (close to RAL9016). Diffuser: UV-stabilised polycarbonate hexagonal comfort optic. Electrical connection via 7 pole piano key terminals, loop-in/loop-out possible. Complete with 4000K LED, Colour Rendering Index min.: 80



Dimensions: 622 x 622 x 55 mm
Luminaire input power: 23 W
Luminaire luminous flux: 3000 lm
Luminaire efficacy: 130 lm/W
Weight: 5.35 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3000 lm
  • Luminaire efficacy*:130 lm/W
  • Lamp efficacy:130 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000h at 25°C
  • Ballast:1x LED_DRV Tridonic LC
  • Luminaire input power*:23 W Power factor = 0.96
  • Dimming:FIX
  • LED
  • CE
  • Einb_NDaeMat
  • 650°
  • IK03
  • IP40_IP20
  • SC2
