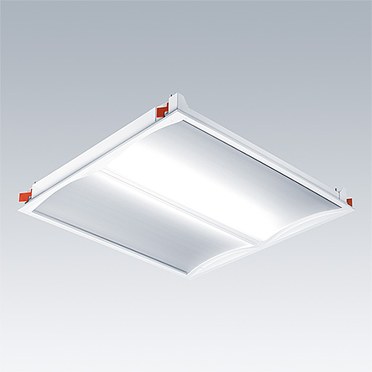

IQ Wave

  • IQ Wave
  • IQ Wave

Our next generation office luminaire features intelligent innovation in 4 key areas, design, optic, control and installation

  • Design: An award winning luminaire with simple and flowing lines that helps to create a modern but simplistic aesthetic.
  • Optics: innovative MV tech optic designed by our expert optical team offers excellent uniformity and glare control, direct/indirect light for illuminance on faces and walls to encourage a comfortable, communicative working environment
  • Controls: Integrated sensors allow you to create flexible control systems suited to your needs. Wireless solution controlled via App with Bluetooth® 4.x - basicDim Wireless. Also available are integrated PIR and microwave sensors.
  • Installation: with our new red flag design you can easily access the pull up set from below the ceiling without the need to remove the optics from the product, allowing for a more secure fixing to the ceiling

Materials and Finish

Frame and end caps: polycarbonate
Diffuser: polycarbonate (TPa), aluminium designed heatsink
Body: highly reflective steel coffer
Gear tray: pre-coated white steel

Installation and Mounting

Suitable for lay in, with accessory suitable for pull up into concealed grid and plasterboard ceilings.

Specification

To specify state:
A lightweight recessed luminaire for exposed T, plasterboard and concealed grid systems with MV tech optic. LED indirect light source. 3000K/4000K/6500K colour temperature, CRI>80 and a lifetime of 50 000 hours @ L90 Ta 25°C including high efficiency at 103 Llm/W, UGR<19. With control systems, PIR, MWS, BC.
As Thorn IQ Wave.

New Product
LumExpress Product
eControl Product

IQ Wave

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
IQ WAVE LED3100-830 HF Q597 MRE303050IQWR3100R3KLED3.8096628132
IQ WAVE LED3100-840 HF Q597 MRE303200IQWR3100R4KLED3.8096628133
IQ WAVE LED3100-865 HF Q597 MRE303200IQWR3100R6KLED3.8096628134
IQ WAVE LED4100-830 HF Q597 MRE404050IQWR4100R3KLED3.8096628135
IQ WAVE LED4100-840 HF Q597 MRE404250IQWR4100R4KLED3.8096628136
IQ WAVE LED4100-865 HF Q597 MRE404250IQWR4100R6KLED3.8096628137

IQ Wave, basicDIM

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
IQ WAVE LED3100-830 BC Q597 MRE303050LED3.8092910604
IQ WAVE LED3100-840 BC Q597 MRE303200LED3.8092903174
IQ WAVE LED3100-865 BC Q597 MRE303200LED3.8092912364
IQ WAVE LED4100-830 BC Q597 MRE404050LED3.8092910605
IQ WAVE LED4100-840 BC Q597 MRE404250LED3.8096631044
IQ WAVE LED4100-865 BC Q597 MRE404250LED3.8092912365

IQ Wave, basicDIM, emergency

IQ Wave (variants)

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
IQ WAVE LED3100-840 HF MWS Q597 MRE303200LED3.8092900292
IQ WAVE LED4100-840 HF MWS Q597 MRE404250LED3.8092900249

IQ Wave, emergency

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
IQ WAVE LED3100-830 HF E3 Q597 MRE303050LED4.4092900337
IQ WAVE LED3100-840 HF E3 Q597 MRE303200IQWR3100RE4KLED4.4096628316
IQ WAVE LED4100-830 HF E3 Q597 MRE404050LED4.4092900338
IQ WAVE LED4100-840 HF E3 Q597 MRE404250IQWR4100RE4KLED4.4096628317

IQ Wave, dimmable

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
IQ WAVE LED3100-830 HFIX Q597 MRE303050LED3.8092900298
IQ WAVE LED3100-840 HFIX Q597 MRE303200IQWR3100X4KLED3.8096628313
IQ WAVE LED3100-840 HFSX Q597 MRE303200LED3.9092900319
IQ WAVE LED4100-830 HFIX Q597 MRE404050LED3.8092900339
IQ WAVE LED4100-830 HFSX Q597 MRE404050LED3.9092900247
IQ WAVE LED4100-840 HFIX Q597 MRE404250IQWR4100X4KLED3.8096628314
IQ WAVE LED4100-840 HFSX Q597 MRE404250LED3.9092900265

IQ Wave, dimmable, emergency

IQ Wave accessories

Description   Catalogue No.Wt (kg)SAP Code
basicDIM ILD PROGRAMMER0.0328000257
IQ WAVE RED FLAG PULL UP KITIQWRPULLUPKIT0.0496628290
Remotecontrol IR60.0228000647
