Cetus S
CETUS3 S LCS HF RWH
Article number: 96634894
EAN number: 9010299340122
Technical Data
Electrical Properties
EEC
D
Luminaire input power
13.1 W
Power factor
0.94
Rated voltage
220 - 240 V
Ballast
Ballast 1: 1 x 87500986 LC 13/400/31 fixC SRL ADV2
Dim Control
Dimmable in steps
Light Distribution
Light Source
LED
Luminaire luminous flux
1509 lm
Luminaire efficacy
115 lm/W
Filterable Correlated Colour Temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
LCS High 840
Physical Characteristics
Dimensions
Ø[137]x[80] mm
Mounting type
Ceiling recessed
Length
137 mm
Width
137 mm
Height
80 mm
Weight
0.322 kg
Colour
White
Cutout Diameter
100 mm
Recessheight
75 mm
Maintenance and Protection
Rated Median Useful Life
L80 50000 h Rated median useful life 25 °C
Maintenance category CIE 97
C - Closed Top Reflector
Downloads
Design Data
DatasheetCombination DatasheetFamily datasheetCircuit breaker dataPhotometric LDTPhotometric IESTransfer to DIALuxTransfer to ReluxTransfer to ecoCALC, VIVALDI, DALEC or HILITE3D BIM Revit file622.59 kB
CETUS3 S LCS HF RWH

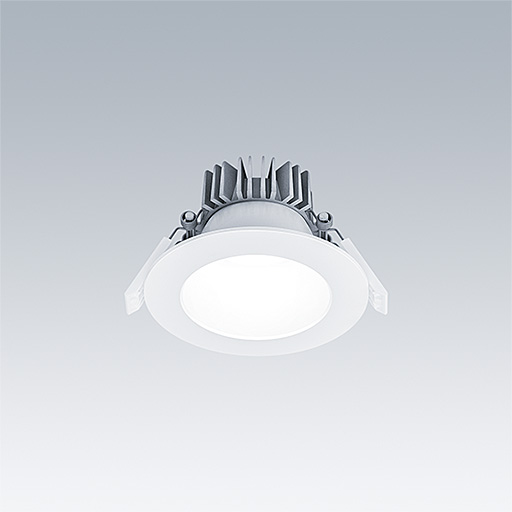

A low height, recessed LED downlight. Suitable for ceiling cut-outs Ø95-125 mm for easy refurbishments or fast initial installations. Remote, pluggable, Dimmable in steps LED driver. Loop in - loop out possible. Body: Die-cast aluminium for thermal management. Diffuser: polycarbonate, smooth reflector in finish with wide beam. Reflector and trim: high quality, highly reflective polycarbonate. Class II electrical, IP44_IP20. Spring clips suitable for ceiling thicknesses from 1 to 25 mm.
Equipped with LCS technology, with two lumen outputs (800lm and 1500lm) and three colour temperatures (3000K, 3500K and 4000K) selectable from below by a rotary switch. Pre-set to 4000K, high luminous flux.
Dimensions: Ø137 x 80 mm
Luminaire luminous flux: 1509 lm
Luminaire efficacy: 115 lm/W
Weight: 0.32 kg
