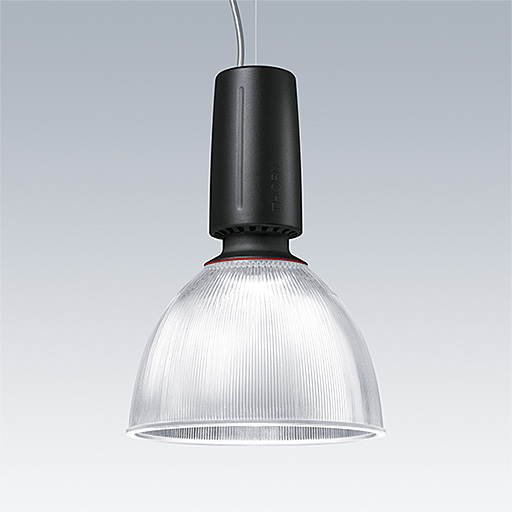

Glacier II / GLAC2 L LED3 6000-840 HFIX E3D BK GL PR

96635220

Data Sheet

A modern and efficient LED pendant luminaire. DALI dimmable control gear with 3 hour, Self/DALI Addressable test, emergency lighting circuit. Housing: die-cast aluminium with satin black finish. Reflector: prismatic glass with easy bayonet mount connection to housing. Class I electrical, IP20. Suspended via adjustable quick-lock 2.5m single wire suspension (supplied). Pre-wired with braided, flame retardent silicone cable, 6 x 0.75mm². Complete with 4000K LED

Dimensions: Ø340/140 x 485 mm
Luminaire input power: 45 W
Weight: 7.1 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:6000 lm
  • Total emergency luminous flux:105 lm
  • Luminaire efficacy*:133 lm/W
  • Colour Rendering Index min.:80
  • Ballast 1:1 x 28000666 LCA 45W 500-1400mA one4all C PRE
  • Ballast 2:1 x 89800627 EM converterLED PRO 202 MH/LiFePO4 50V
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:45 W Power factor = 0.96
  • Standby Power*:0.2 W
  • Charging power:4 W
  • Dimming:DA2 dimmable to 1%
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • CE
  • EN 55015
  • GLedReP
  • IP20
  • LLedNr
  • SC1
  • Ta=25

Photometry

Photometric configuration

CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
