Voyager Fit / VOYAGER FIT MRC E3D NM

96629568 / VYFITRE3D

Change configuration

  • Base: 96629568 — VOYAGER FIT MRC E3D NM
  • Optic: SPOT: spot emergency optic

Data Sheet

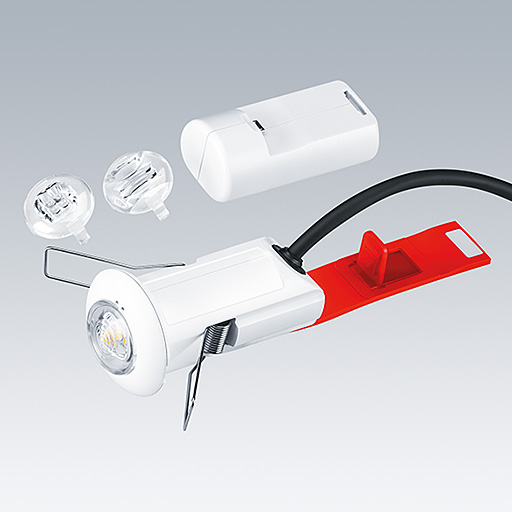

Self contained, ceiling recessed, emergency lighting luminaire with 3 hour, Self/Addressable test, emergency lighting circuit, non-maintained. Housing: white (close to RAL9016) polycarbonate. Battery strap: red rubber incorporating cable. Suitable for mounting into ceiling thicknesses from 1 to 25mm. Class II electrical (this product is not earthed), IP20, IK03. Ceiling cut-out Ø40mm, void 80mm minimum. Pre-wired with 250mm, low smoke, halogen free 0.75mm² stranded cable with prepared ends. Complete with 6500K LED.

Interchangeable optics for anti-panic, escape route and spot applications included.

Luminaire input power: 0 W
Dimensions: Ø51 x 94 mm
Weight: 0.23 kg

Self-contained emergency luminaires rely on long-lasting batteries. Voyager Fit's high-tech lithium iron phosphate battery is robust and comes with a three-year guarantee (applicable subject to the terms and conditions of and to the extent as set forth in the manufacturer's guarantee on Thorn products, which shall be applicable analogously and which is available under http://www.thornlighting.com/en/products/5-year-guarantee/5-year-warranty/terms-of-guarantee_en.pdf. The battery guarantee shall not come into effect if the product has been installed later than three(3) months after delivery EXW (Incoterms 2010).

Equipped with:

  • Optics polycarbonate lens for spot emergency lighting.
Mode selection
  • Lamp position:SPOT (spot optic)
  • Light Source:LED
  • Luminaire luminous flux*:200 lm
  • Lamp efficacy:200000 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 89800544 Voyager FIT MRC E3D NM
  • Correlated colour temperature:6500 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000h at 30°C
  • Luminaire input power*:0 W
  • Charging power:2.5 W
  • LED
  • BSI
  • CE
  • ENEC
  • 850°
  • IK03
  • IP20
  • SC2
  • Ta = +5 to +30
  • UKCA
