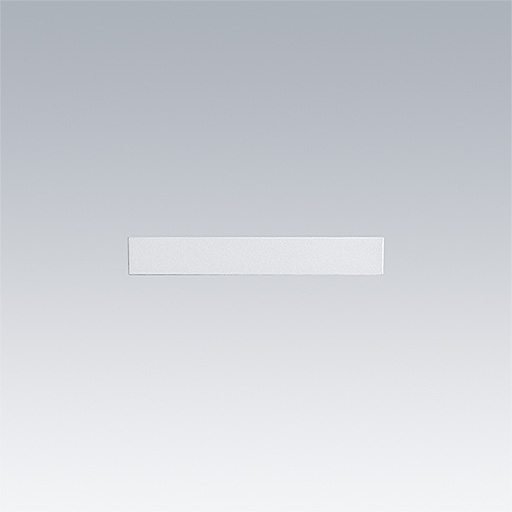

Axyl Greet W / AXYL GREETW L U/D 56L 927 WB RD WH

Axyl Greet W, large up&down, a wall mounted, architectural LED luminaire for decorative facade lighting, with wide beam up and down distribution. Class III electrical. DALI-2 dimmable Remote LED driver. , IP65, Impact strength: IK04. Housing: Die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +50°C. Complete with 2700K LED.

Operate with 96700028 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to one luminaire(s).
Maximum operating current : 500mA.
Maximum distance of 10m between luminaire(s) and driver.

Dimensions: 290 x 105 x 43 mm
Luminaire input power: 12.1 W
Luminaire luminous flux: 1029 lm
Luminaire efficacy: 85 lm/W
Weight: 1.66 kg

Sélection de mode

Sélection de modeSTD - Standard

• Position de la lampe:STD - Standard
• Source lumineuse:LED
• Flux lumineux du luminaire*:1029 lm
• Efficacité lumineuse du luminaire*:85 lm/W
• Indice min. de rendu des couleurs:90
• Température de couleur*:2700 Kelvin
• Tolérance de la couleur (MacAdam intial):3
• Vie utile nominale (B10)*:L80 70000 h à 25 °C
• Convertisseur:0x LED_DRV
• Puissance du luminaire*:12,1 W Facteur de puissance = 0,99
• Equipement:Dali2Dim
