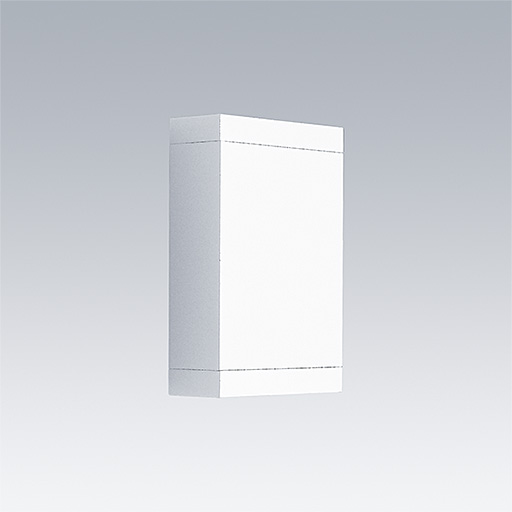

Axyl Glow, large up & down

AXYL GLOW L U/D 10L930 WB RD WH
Article number: 96701326
EAN number: 9010757152243
wall mounted luminaire 29.3W 1103lm 3,000 K
Dimming
Dimming DALI
Correlated colour temperature
3000 K
Luminaire luminous flux
1103 lm
Colour
White

Technical Data

Electrical Properties
EEC
E
Luminaire input power
29.3 W
Power factor
0.95
Rated voltage
220 - 240 V
Safety Class
SC3
Dimming
Dimming DALI
Emergency included
false
Light Distribution
Light Source
LED
Luminaire luminous flux
1103 lm
Luminaire efficacy
38 lm/W
Correlated colour temperature
3000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
wide beam up and down
Physical Characteristics
Dimensions
140x200x72 mm
Mounting type
Wall surface mounted
Length
140 mm
Width
72 mm
Height
200 mm
Weight
2.362 kg
Colour
White
Impact strength
IK06
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h Rated useful life (B10) 25 °C
Norms and Standards
Certificates
CE
SC3 - Protection Class 3
IK06
IP65
Drawings
Light Distribution
Dimensional sketch

Downloads

Accessories

AXYL GLOW L U/D 10L930 WB RD WH

Axyl Glow, a wall mounted, architectural LED luminaire for decorative facade lighting, 2 window with wide beam up and down distribution. Class III electrical. DALI-2 dimmable Remote LED driver. IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +50°C. Complete with 3000K LED. Operate with 96700030 DALI2 Remote Driver (to be ordered separately). Driver capable of supplying up to one luminaire(s). Maximum operating current : 900mA. Maximum distance of 10m between luminaire(s) and driver. Dimensions: 140 x 200 x 72 mm Luminaire luminous flux: 1103 lm Luminaire efficacy: 38 lm/W Weight: 2.36 kg
