Flow / FW 36L105-740 NR CL1 T60F ANT

96635500

Data Sheet

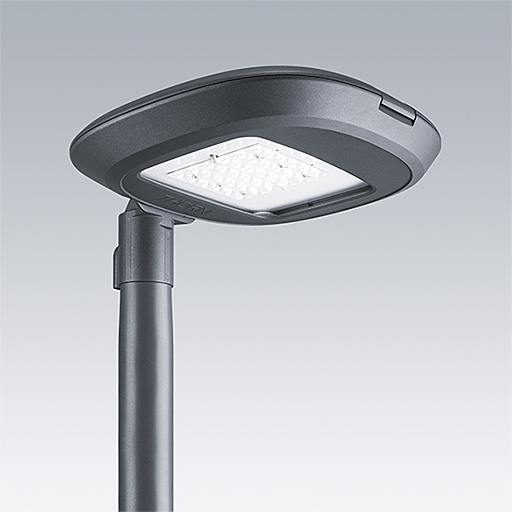

A highly versatile LED lantern with a Narrow Road, asymmetric distribution. Electronic, fixed output control gear driving 36 LEDs at 1.05A. Compatible with PL, LRT, 7 pin Nema socket. Class I electrical, IP66, IK10. Housing, canopy and spigot: die-cast aluminium (EN AC-47100) powder coated anthracite (close to RAL7043).. Enclosure: 6mm thick clear glass. 10kV single pulse - 6kV multipulse when DALI used. Complete with 4000K LED. Post top mounting to Ø60mm column, tilt 5°, adjustable from 0° to +10°.

Dimensions: 435 x 436 x 200 mm
Luminaire input power: 117 W
Luminaire luminous flux: 15360 lm
Luminaire efficacy: 131 lm/W
Weight: 8.5 kg
Scx: 0.054 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:15360 lm
  • Luminaire efficacy*:131 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 87500657 LCA 120W 350-1050mA one4all C PRE OTD
  • Correlated colour temperature:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L85 100000h at 25°C
  • Luminaire input power*:117 W
  • Dimming:Fixed output
  • LED
  • CE
  • ENEC11
  • GLedReP
  • IK10
  • IP66
  • Coastal_C3
  • LLedReP
  • SC1
  • Ta=-30 to +25
