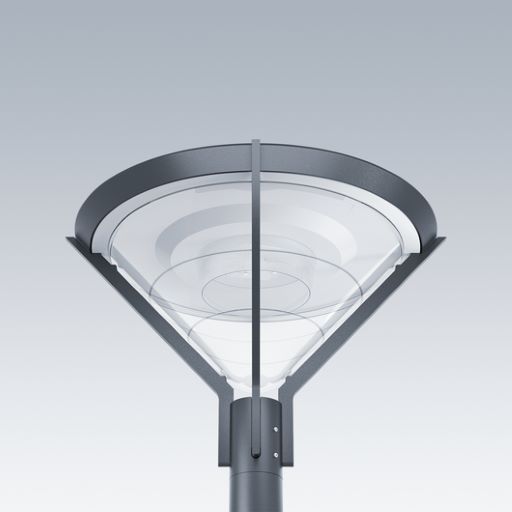

Avenue F2 with conical bowl
AVF 18L70-730 RS CL BS 3550 CL1 CON ->
Article number: 96265443
EAN number: 3607640246392
Technical Data
Electrical Properties
Luminaire input power
40 W
Power factor
0.98
Rated voltage
230 V
Ballast
Ballast 1: 1 x 96277063 DRV OS OT 40W 1.05A 56V D #4DIMLT2 G2 CE
Safety Class
SC1
Dim Control
fixed output control gear
Light Distribution
Light Source
LED
Luminaire luminous flux
4855 lm
Luminaire efficacy
121 lm/W
Filterable Correlated Colour Temperature
3000 K
Chromaticity tolerance (initial MacAdam)
5
Colour Rendering Index min.
70
Light Distribution
STD - standard
Physical Characteristics
Dimensions
Ø[700]/[720]x[500] mm
Mounting type
Outdoor post top
Length
720 mm
Width
700 mm
Height
500 mm
Weight
8.9 kg
Colour
Grey
Impact strength
IK08
Degree of protection
IP66
Maintenance and Protection
Rated Median Useful Life
L90 100000 h Rated useful life (B10) 25 °C
Norms and Standards
Certificates
Downloads
Design Data
DatasheetCombination DatasheetFamily datasheetCircuit breaker dataRCM Declaration of ConformityCE / UKCA - Declaration of ConformityPhotometric LDTPhotometric IESTransfer to DIALuxTransfer to ReluxTransfer to ecoCALC, VIVALDI, DALEC or HILITE3D BIM Revit file454.66 kB
AVF 18L70-730 RS CL BS 3550 CL1 CON ->
Decorative post-top lantern with symmetric distribution. Equipped with 50% power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. It can be deactivated at installation with an easily accessible internal switch. Class I electrical, IP66, IK08. Base and arms: Die-cast aluminium (EN AC-46000), Canopy: spun aluminium, all powder coated dark sandy grey 900 (close to RAL7043). Diffuser: clear polycarbonate. Screw fixings: stainless steel. Supplied complete in one box. Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode. Complete with 3000K LED
Post top mounted on a spigot of Ø76mm, length 100mm.
Dimensions: Ø700/720 x 500 mm
Weight: 9.1 kg
Scx: 0.17 m²
Luminaire efficacy: 121 lm/W
