CONT3 4L WHITE-BU CBOX GB HFX 6K
Article number: 96633487
EAN number: 5037319770541

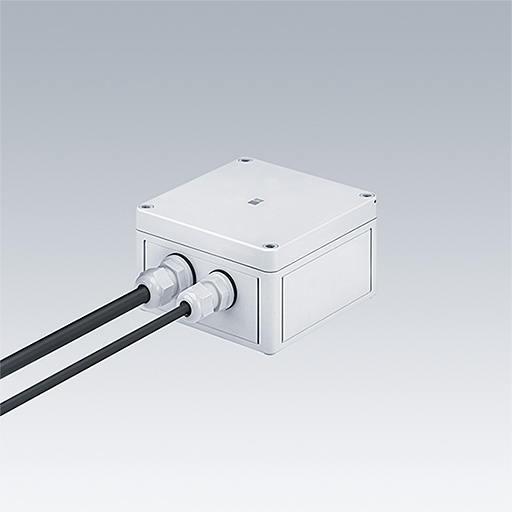

Connection box
Find your perfect lighting solution for your project in just a few steps

Technical Data

Electrical Properties
Luminaire input power
6 W
Rated voltage
220 - 240 V
Ballast
Ballast 1: 1 x 28003160 LCO 40/200-1050/64 o4a NF C EXC3
Safety Class
SC2
Light Distribution
Light Source
1 x CONLGB / 6 W
Light Distribution
STD - standard
Physical Characteristics
Weight
1.4 kg
Impact strength
IK08
Degree of protection
IP66
Maintenance and Protection
Rated Median Useful Life
L90 50000 h Rated median useful life 25 °C
Norms and Standards
Certificates
Ta = -20 to +35
GLedReP
RCM
CE
SC2 - Protection Class 2
IK08
IP66
Coastal_C5
Drawings
Dimensional sketch
Download the file

Downloads

CONT3 4L WHITE-BU CBOX GB HFX 6K

Connection box for 3 to 5 white or blue small Contrast, including DALI driver. Surge protection 6kV.
