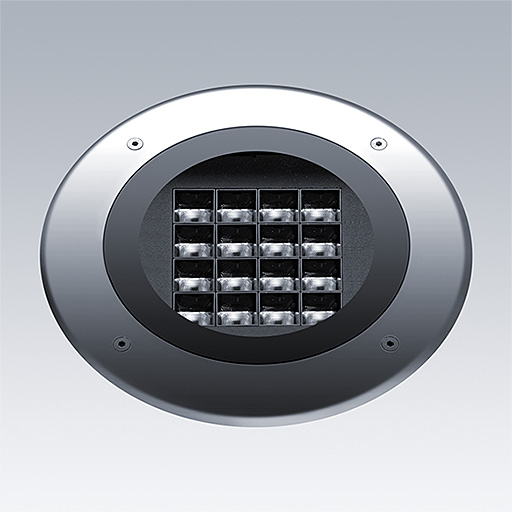

Cesar Opera, drive over extra-large
CESAR OPERA XL DO 16L 930 NB HFX SS
Article number: 96700969
EAN number: 9010757143715
Technical Data
Electrical Properties
EEC
E
Luminaire input power
33 W
Rated voltage
220 - 240 V
Safety Class
SC1
Dimming
Dimming DALI
Emergency included
false
Light Distribution
Light Source
LED
Luminaire luminous flux
2412 lm
Luminaire efficacy
73 lm/W
Correlated colour temperature
3000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
narrow beam
Physical Characteristics
Dimensions
Ø[375]x[200] mm
Mounting type
Floor Recessed
Length
375 mm
Width
375 mm
Height
200 mm
Weight
9.729 kg
Colour
Steel
Impact strength
IK10
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h Rated useful life (B10) 25 °C
Norms and Standards
Certificates
Downloads
CESAR OPERA XL DO 16L 930 NB HFX SS
Cesar Opera, drive over a floor recessed, architectural LED luminaire for decorative facade lighting, narrow beam distribution.. DALI-2 dimmable LED driver. Class I electrical, IP67, Impact strength: IK10. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +45°C. Complete with 3000K LED.
Dimensions: Ø375 x 200 mm
Luminaire luminous flux: 2412 lm
Luminaire efficacy: 73 lm/W
Weight: 9.73 kg
