Olsys Area

Olsys 1 area

OLSYS1 18L70 740 CL1 AREA A/S
Article number: 96633542
EAN number: 9010299165510
area floodlighting 40.5W 4920lm 4,000 K
Dim Control
fixed output control gear
Filterable Correlated Colour Temperature
4000 K
Luminaire luminous flux
4920 lm
Colour
Silver
Find your perfect lighting solution for your project in just a few steps

Technical Data

Electrical Properties
EEC
C
Luminaire input power
40.5 W
Power factor
0.9
Rated voltage
230 V
Safety Class
SC1
Dim Control
fixed output control gear
Light Distribution
Light Source
LED
Luminaire luminous flux
4920 lm
Luminaire efficacy
121 lm/W
Filterable Correlated Colour Temperature
4000 K
Chromaticity tolerance (initial MacAdam)
4
Colour Rendering Index min.
70
Light Distribution
STD - standard
Physical Characteristics
Dimensions
330x225x59 mm
Mounting type
Outdoor post top lateral
Length
330 mm
Width
225 mm
Height
59 mm
Weight
2.901 kg
Colour
Silver
Impact strength
IK08
Degree of protection
IP66
Maintenance and Protection
Rated Median Useful Life
L90 50000 h Rated median useful life 25 °C
Norms and Standards
Certificates
Ta=50°C
GLedReP
LLedReP
EAC
RCM
CE
Electrical class I
IK08
IP66
ENEC
Coastal_C3
Drawings
Light Distribution
Download the file
Dimensional sketch
Download the file

Downloads

OLSYS1 18L70 740 CL1 AREA A/S

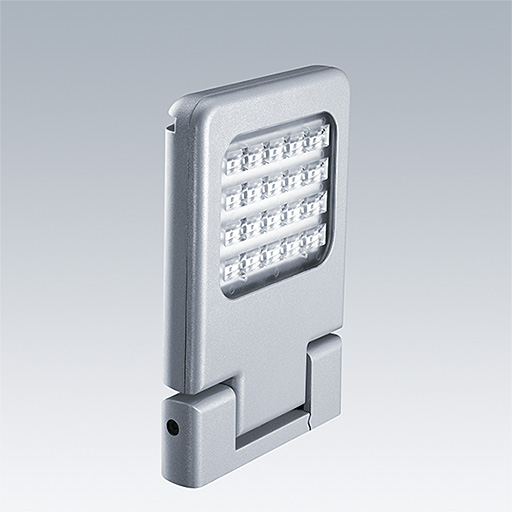

An LED floodlight with asymmetric distribution for area lighting applications. Electronic, fixed output control gear. Class I electrical, IP66, IK08. Body: Die-cast aluminium (AS9U), powder coated silver-grey (RAL 9006). Enclosure: clear polycarbonate. Optics: polycarbonate. Supplied in one box, ready to install. Mounting attachments to be ordered separately. Complete with 4000K LED ambient temperature: -30°C to +50°C Dimensions: 330 x 225 x 59 mm Weight: 2.85 kg Scx: 0.07 m²
