1. PopPack battens, dimmable, emergency

Contus, electrical feed

CONTUS TM L750 BK
Article number: 96637213
EAN number: 9010757200036
Electic feeds
Colour
Black
Find your perfect lighting solution for your project in just a few steps

Technical Data

Light Distribution
Light Distribution
STD - standard
Physical Characteristics
Dimensions
750x60x54 mm
Length
750 mm
Width
60 mm
Height
54 mm
Weight
1.45 kg
Colour
Black
Drawings
Dimensional sketch

Downloads

CONTUS TM L750 BK

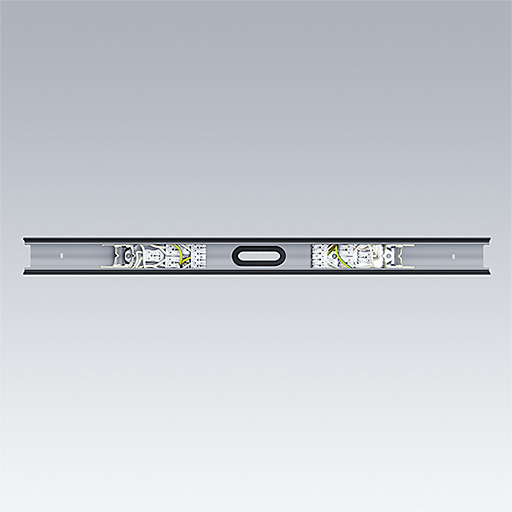

Electrical centre feed L750 in black made of roll-formed sheet steel for central electrical connection or central load distribution of the continuous row. 2 sets with plug-in connecting terminals for 5 mains power lines, 2 x 2 emergency lighting conductors and 2 control lines. Touch protection for current conducting section. The Contus centre feed can be covered with the ends of two Contus luminaires that have a length of at least 1000 mm or with cover strips. The center feed unit is delivered together with two trunking endcaps. Dimensions: 750 x 60 x 54 mm Weight: 1.45 kg
