1. R2L2 Small - Optique pour route étroite

Contus, electrical feed

CONTUS TE L500 BK
Article number: 96637211
EAN number: 9010757200012
Electic feeds
Colour
Black

Technical Data

Electrical Properties
Emergency included
false
Light Distribution
Light Distribution
STD - standard
Physical Characteristics
Dimensions
533x60x58 mm
Length
533 mm
Width
60 mm
Height
58 mm
Weight
1.4 kg
Colour
Black
Drawings
Dimensional sketch

Downloads

Contus, electrical feed

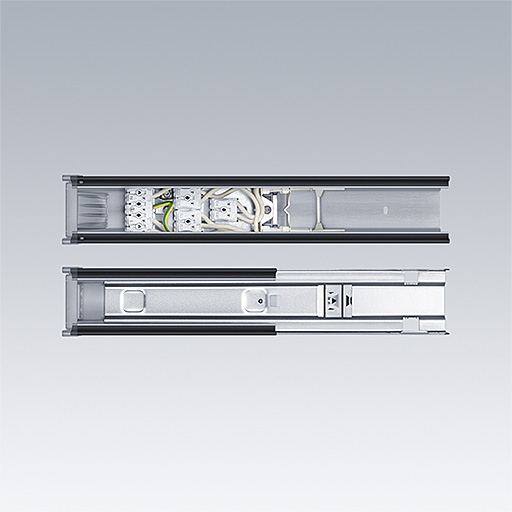

96637211 CONTUS TE L500 BK Power-feed kit L500 in black made of profiled sheet steel for electrical connection of the continuous row. Kit consists of two units, one featuring the terminal blocks for the electrical connection, and the other is a mechanical part. Together they achieve the 500mm length, that allows the line to be fully equipped and covered by CONTUS luminaires. Plug-in connecting terminals for 5 mains power lines, 2 x 2 emergency lighting conductors and 2 control lines. Includes end caps and protective covers to prevent accidental contact with electrical conductors. Dimensions: 533 x 60 x 58 mm Weight: 1.4 kg
