Tonic, wide flood
TONIC XS 1700-940 3GU WFL WH
Article number: 96638008
EAN number: 9010757210035
Technical Data
Electrical Properties
Luminaire input power
14.3 W
Power factor
0.9
Rated voltage
220 - 240 V
Safety Class
SC2
Dim Control
fixed output control gear
Light Distribution
Light Source
LED
Luminaire luminous flux
1563 lm
Luminaire efficacy
109 lm/W
Filterable Correlated Colour Temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam Angle
wide flood light distribution
Physical Characteristics
Dimensions
Ø[55]x[125] mm
Mounting type
Surface mounted
Length
55 mm
Width
55 mm
Height
125 mm
Weight
0.4 kg
Colour
White
Degree of protection
IP20
Reflector Color
Die-cast
Maintenance and Protection
Rated Median Useful Life
L80 50000 h Rated median useful life 25 °C
Maintenance category CIE 97
D - Enclosed IP2X
Norms and Standards
Certificates
Downloads
Design Data
DatasheetCombination DatasheetFamily datasheetRCM Declaration of ConformityCE / UKCA - Declaration of ConformityPhotometric LDTPhotometric IESTransfer to DIALuxTransfer to ReluxTransfer to ecoCALC, VIVALDI, DALEC or HILITE2D CAD drawing102.64 kB
35.95 kB
573.44 kB
TONIC XS 1700-940 3GU WFL WH

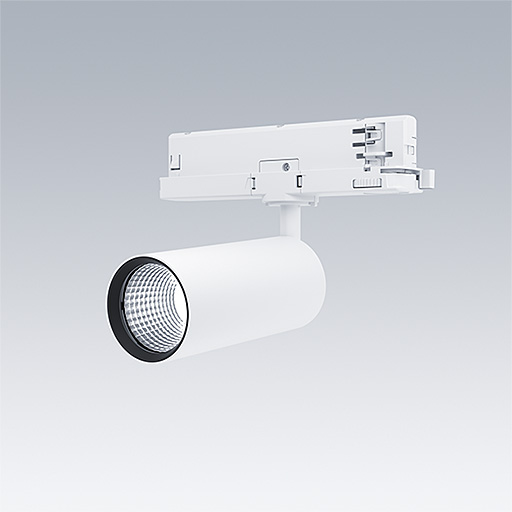

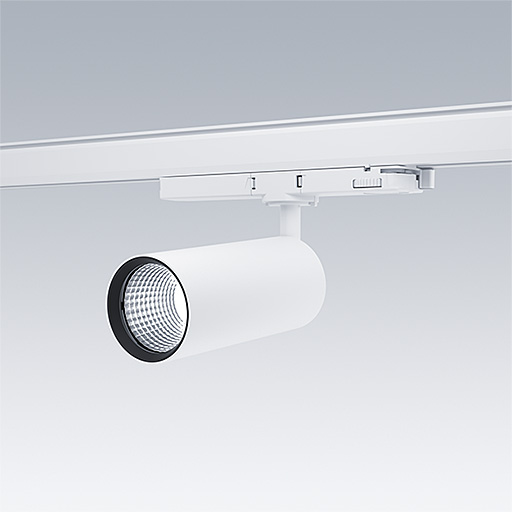

LED spotlight for 3 phase track installations with wide flood light distribution and stabilized color temperature. Electronic, fixed output control gear. Class II electrical, IP20. Body: Die-cast aluminium white micro-textured paint. Reflector: PC sputtered. Spotlight rotatable through 360° and pivotable through 90°. Complete with 4000K LED
Dimensions: Ø55 x 125 mm
Luminaire luminous flux: 1563 lm
Luminaire efficacy: 109 lm/W
Weight: 0.4 kg
