Graffiti, 3GU spot
GRAFFITI 2800-930HE SWI 3GU SP BK
Article number: 96108753
EAN number: 4053167565994
Technical Data
Electrical Properties
EEC
C
Luminaire input power
21 W
Power factor
0.95
Rated voltage
220 - 240 V
Ballast
Ballast 1: 1 x 06892756 DRV TC IN 30W 800mA 43V F #DIP 550mA
Safety Class
SC1
Dimming
switchable luminaire
Emergency included
false
Light Distribution
Light Source
LED
Luminaire luminous flux
2700 lm
Luminaire efficacy
129 lm/W
Correlated colour temperature
3000 K
Chromaticity tolerance (initial MacAdam)
2
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
spot light distribution
Physical Characteristics
Dimensions
Ø[95]x[205] mm
Mounting type
Surface mounted
Length
95 mm
Width
95 mm
Height
205 mm
Weight
0.711 kg
Colour
Black
Degree of protection
IP20
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 50000 h Rated median useful life 25 °C
Maintenance category CIE 97
D - Enclosed IP2X
Norms and Standards
Certificates
Downloads
GRAFFITI 2800-930HE SWI 3GU SP BK

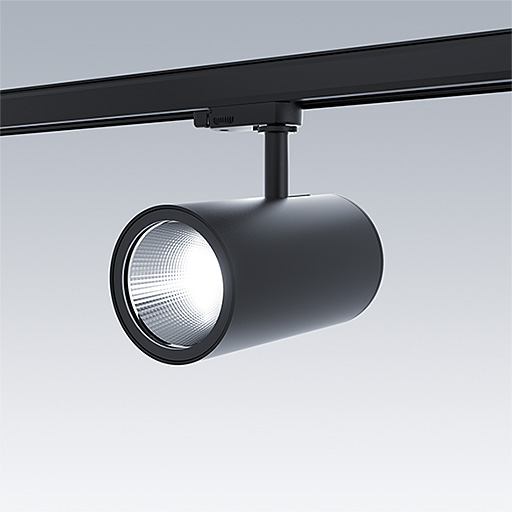

LED spotlight for 3 phase track installations with spot light distribution and stabilized color temperature. Electronic, switchable luminaire. Class I electrical, IP20. Body: Die-cast aluminium black micro-textured paint. Reflector: PC sputtered. Spotlight rotatable through 337° and pivotable through 90°. Complete with 3000K LED, maximum efficiency
This article is single packed article and can also be ordered bulk packed.
Dimensions: Ø95 x 205 mm
Luminaire luminous flux: 2700 lm
Luminaire efficacy: 129 lm/W
Weight: 0.71 kg
