Beta 3 / BETA 3 4100-830 HF E3 LRO 3X12

96800041

Data Sheet

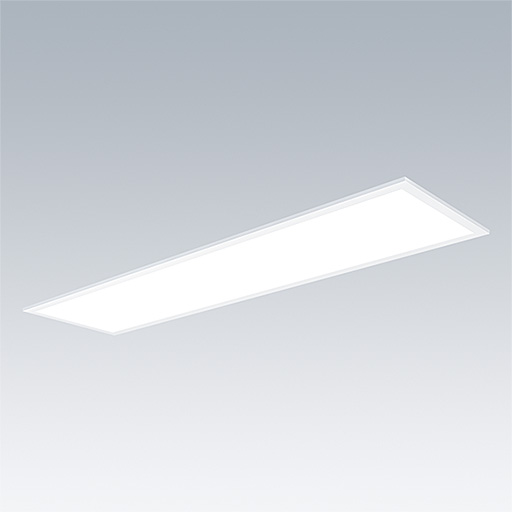

A rectangular ceiling recessed LED luminaire. Fixed output LED driver with 3 hour, manual test, emergency lighting circuit. Class I electrical, IP44_IP20, Impact strength: IK03. Body: steel sheet, white (close to RAL9016). Diffuser: Opalised PMMA with micro-prismatic foil inlay. Supplied with safety wire. Complete with 3000K LED.



Dimensions: 1196 x 296 x 34 mm
Luminaire input power: 33.6 W
Luminaire luminous flux: 3690 lm
Luminaire efficacy: 110 lm/W
Weight: 3.6 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3690 lm
  • Total emergency luminous flux:288 lm
  • Luminaire efficacy*:110 lm/W
  • Colour Rendering Index min.:80
  • Ballast 1:1 x 87500894
  • Ballast 2:1 x 89800576 EM converterLED BASIC 203 MH/LiFePO4 50V
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:33.6 W Power factor = 0.95
  • Charging power:2.3 W
  • Dimming:FIX
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CE
  • NoIsol
  • GLedReP
  • 650°
  • IK03
  • IP44_IP20
  • LLedNr
  • RG0
  • SC1
  • Ta = 0 to +25
