Chalice 3 / CHAL3 150 2000-840 EHF RSB IP65

96108789

Data Sheet

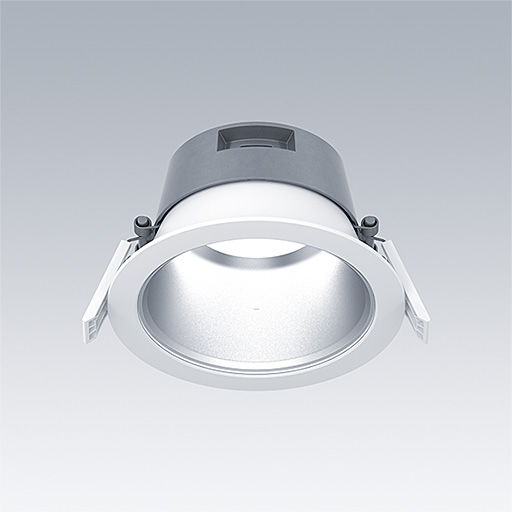

A highly efficient and sustainable LED downlight with low height. Suitable for mounting in ceiling thicknesses of 1 to 40 mm and Ø150mm cut-out with spring clips. Remote, pluggable, Fixed output LED driver with DC functionality, adjustable 50-100%, NFC configurable.Loop in - loop out possible. Body: die-cast aluminium for highly efficient thermal management with recycling content >90%. Diffuser: polycarbonate. Reflector and trim: polycarbonate smooth reflector in satinbrite finish with wide beam and additional ultrasonic welded clear polycarbonate cover IP65. Class II electrical (this product is not earthed), IP65_IP20. Complete with 4000K LED



Dimensions: Ø174 x 94 mm
Luminaire input power: 16.9 W
Luminaire luminous flux: 1910 lm
Luminaire efficacy: 113 lm/W
Weight: 0.71 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1910 lm
  • Luminaire efficacy*:113 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28003812 LC 25/200-650/38 NF SR EXC3
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:16.9 W Power factor = 0.88
  • Dimming:FIX
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • CE
  • NoIsol
  • GLedReP
  • 850°
  • Hfree
  • IK06
  • IP65_IP20
  • LLedReP
  • RG1
  • SC2
  • Ta=25
  • UKCA
