1. Chalice 3 150 dimmable, emergency

Chalice 3 100 emergency

CHAL3 100 800-840 EHF E3D RSB
Article number: 93901334
EAN number: 4053167594512

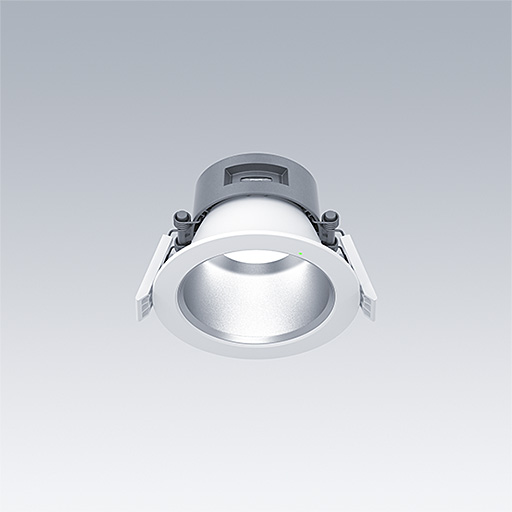

ceiling-recessed luminaire D119 10.5W 771lm 4,000 K
Dimming
Fixed output
Correlated colour temperature
4000 K
Luminaire luminous flux
771 lm
Colour
White

Technical Data

Electrical Properties
EEC
C
Luminaire input power
10.5 W
Power factor
0.68
Rated voltage
220 - 240 V
Ballast
Ballast 1: 1 x 89801166 cPK PRO SLIM w/o Battery
Safety Class
SC2
Dimming
Fixed output
Emergency included
true
Light Distribution
Light Source
LED
Luminaire luminous flux
771 lm
Luminaire efficacy
73 lm/W
Correlated colour temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Total emergency luminous flux
340 lm
Physical Characteristics
Dimensions
Ø[119]x[75] mm
Mounting type
Ceiling recessed
Length
119 mm
Width
119 mm
Height
75 mm
Weight
0.886 kg
Colour
White
Impact strength
IK08
Degree of protection
IP54_IP20
Cutout Diameter
100 mm
Recessheight
70 mm
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L90 50000 h Rated median useful life 25 °C
Maintenance category CIE 97
C - Closed Top Reflector
Norms and Standards
Certificates
Ta=25
850°
GLedReP
LLedReP
EAC
RCM
CE
SC2 - Protection Class 2
IK08
Halogenfree
IP54-IIP20
NoIsol
RG1
UKCA
Drawings
Light Distribution
Dimensional sketch

Downloads

CHAL3 100 800-840 EHF E3D RSB

A high efficient and sustainable LED downlight with low height. Suitable for mounting in ceiling thicknesses of 1 to 40 mm and Ø100mm cut-out with spring clips. Remote, pluggable, Fixed output LED driver NFC configurable with 3-hour emergency light function and self-test / DALI addressable testing. Body: Die-cast aluminium for high efficient thermal management with recycling content >90%. Diffuser: polycarbonate. Reflector and trim: polycarbonate smooth reflector in satinbrite finish with wide beam. Class II electrical, IP54_IP20. Complete with 4000K LED Dimensions: Ø119 x 75 mm Luminaire luminous flux: 771 lm Luminaire efficacy: 73 lm/W Weight: 0.86 kg
