Novaline Style S, dimmable
NOVS S 1900-830 DI HFI WH
Article number: 96635522
EAN number: 9010299765390
Technical Data
Electrical Properties
EEC
C
Luminaire input power
13.2 W
Power factor
0.96
Rated voltage
220 - 240 V
Ballast
Ballast 1: 1 x 28000664 DRV TR LCA 17W 700mA 50V D #O4A C PRE
Safety Class
SC2
Dimming
Dimming DALI
Emergency included
false
Light Distribution
Light Source
LED
Luminaire luminous flux
1750 lm
Luminaire efficacy
133 lm/W
Correlated colour temperature
3000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Physical Characteristics
Dimensions
Ø[320]x[69] mm
Mounting type
Surface mounted
Length
320 mm
Width
320 mm
Height
69 mm
Weight
1.69 kg
Impact strength
IK08
Degree of protection
IP54
Maintenance and Protection
Rated useful life (B10)
L80 50000 h Rated median useful life 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
Norms and Standards
Certificates
Downloads
Design Data
DatasheetCombination DatasheetFamily datasheetEnvironmental Product Declaration (EPD)Circuit breaker dataPhotometric LDTPhotometric IESTransfer to DIALuxTransfer to ReluxTransfer to ecoCALC, VIVALDI, DALEC or HILITE3D BIM Revit file540.67 kB
NOVS S 1900-830 DI HFI WH

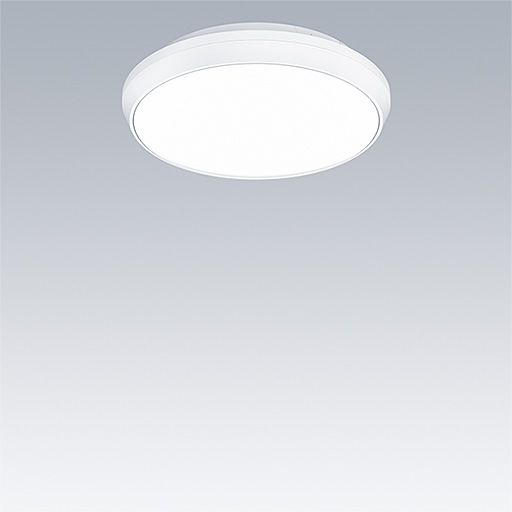

Decorative circular luminaire with small body. Low indirect component for wall and ceiling illumination. Electronic, DALI dimmable. Aesthetic trim of the luminaire made of polycarbonate in white. Diffuser: opal polycarbonate. Class II electrical, IP54. Complete with 3000K LED.
Dimensions: Ø320 x 69 mm
Luminaire luminous flux: 1750 lm
Luminaire efficacy: 133 lm/W
Weight: 1.68 kg
