Novaline Style M, dimmable
NOVS M 3500-840 DI HFI SR
Article number: 96635531
EAN number: 9010299765482
Technical Data
Electrical Properties
EEC
C
Luminaire input power
24.6 W
Power factor
0.97
Rated voltage
220 - 240 V
Total harmonic distortion (THD)
8 percent
Ballast
Ballast 1: 1 x 28000665 LCA 25W 350-1050mA one4all C PRE
Safety Class
SC2
Dimming
Dimming DALI
Emergency included
false
Light Distribution
Light Source
LED
Luminaire luminous flux
3500 lm
Luminaire efficacy
142 lm/W
Correlated colour temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Physical Characteristics
Dimensions
Ø[397]x[69] mm
Mounting type
Surface mounted
Length
397 mm
Width
397 mm
Height
69 mm
Weight
2.14 kg
Impact strength
IK08
Degree of protection
IP54
Maintenance and Protection
Rated useful life (B10)
L80 50000 h Rated median useful life 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
Norms and Standards
Certificates
Downloads
Design Data
DatasheetCombination DatasheetFamily datasheetCircuit breaker dataPhotometric LDTPhotometric IESTransfer to DIALuxTransfer to ReluxTransfer to ecoCALC, VIVALDI, DALEC or HILITE3D BIM Revit file540.67 kB
NOVS M 3500-840 DI HFI SR

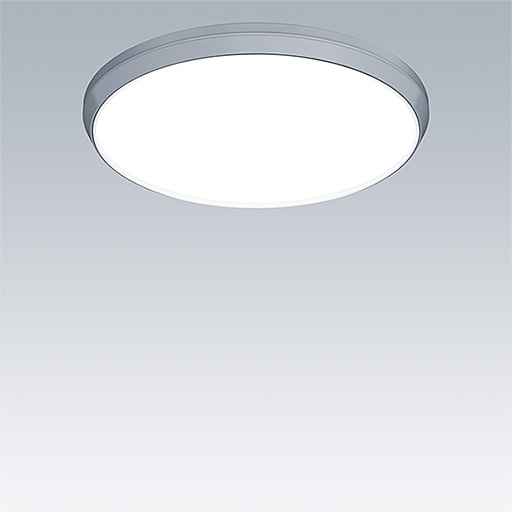

Decorative circular luminaire with medium body. Low indirect component for wall and ceiling illumination. Electronic, DALI dimmable. Aesthetic trim of the luminaire made of polycarbonate in silver. Diffuser: opal polycarbonate. Class II electrical, IP54. Complete with 4000K LED.
Dimensions: Ø397 x 69 mm
Luminaire luminous flux: 3500 lm
Luminaire efficacy: 142 lm/W
Weight: 2.14 kg
