IQ Wave Suspended, Contus
IQ SUSP S LED4900-840 HF CONT WH
Article number: 96637142
EAN number: 5063016777293
Technical Data
Electrical Properties
EEC
D
Luminaire input power
42 W
Power factor
0.92
Rated voltage
220 - 240 V
Total harmonic distortion (THD)
12.4 percent
Ballast
Ballast 1: 1 x 28000713 LC 75W 100-400mA flexC lp EXC
Safety Class
SC1
Dim Control
fixed output control gear
Light Distribution
Light Source
LED
Luminaire luminous flux
4900 lm
Luminaire efficacy
117 lm/W
Filterable Correlated Colour Temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Physical Characteristics
Dimensions
1140x210x70 mm
Mounting type
Suspended
Length
1140 mm
Width
210 mm
Height
70 mm
Weight
4.12 kg
Colour
White
Impact strength
IK05
Degree of protection
IP20
Maintenance and Protection
Rated Median Useful Life
L90 50000 h Rated median useful life 25 °C
Maintenance category CIE 97
C - Closed Top Reflector
Norms and Standards
Certificates
Downloads
Design Data
DatasheetCombination DatasheetFamily datasheetCircuit breaker dataRCM Declaration of ConformityCE / UKCA - Declaration of ConformityPhotometric LDTPhotometric IESTransfer to DIALuxTransfer to ReluxTransfer to ecoCALC, VIVALDI, DALEC or HILITE2D CAD drawing108.22 kB
319.48 kB
IQ SUSP S LED4900-840 HF CONT WH

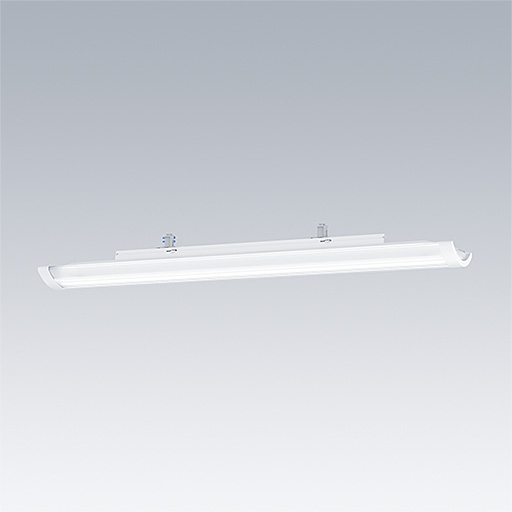

A lightweight, suspended, LED luminaire with MV Tech optic. Electronic, fixed output control gear. Class I electrical, IP20, IK05. Body, diffuser, frame and endcaps: polycarbonate finished in white (close to RAL9016). Gear tray: pre-coated white steel. Pre-assembled with Contus trunking adapter. Suspension wires included. Ceiling rose to be ordered separately. Complete with 4000K LED
Dimensions: 1140 x 210 x 70 mm
Luminaire luminous flux: 4900 lm
Luminaire efficacy: 117 lm/W
Weight: 4.12 kg
