1. ZX / ZX2
SensaLite

Switching presence detectors

SWITCHLITE MRE SLD 2CH
Article number: 96627553
EAN number: 5037319267874
Passive Infrared detector

Technical Data

Electrical Properties
Safety Class
SC2
Emergency included
false
Physical Characteristics
Weight
0.154 kg
Degree of protection
IP40
Norms and Standards
Certificates
CE
SC2 - Protection Class 2
Halogenfree
IP40
Drawings
Dimensional sketch

Downloads

SWITCHLITE MRE SLD 2CH

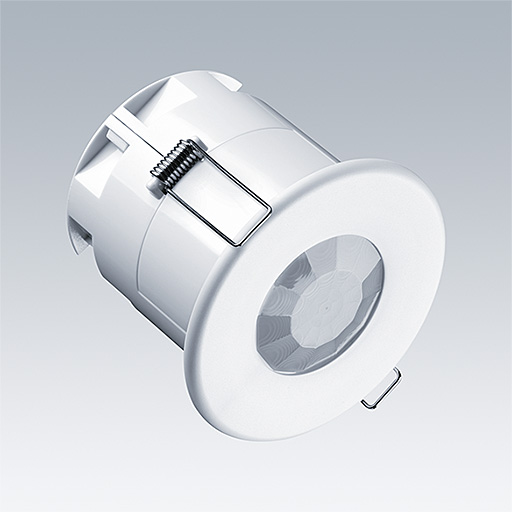

The SWITCHLITE MRE SLD 2CH recessed PIR Presence Detector provides energy saving (on/off switching) in response to room occupancy and daylight levels, controlling lighting loads with optional manual control. The detector provides two independently controlled output channels that can be used for a variety of applications. • Occupancy of two independent lighting circuits using a single detector, e.g. for essential and non-essential supplies. • Occupancy and lux control of one lighting circuit and just occupancy control of a second circuit, e.g. where a row of luminaries by a window is lux controlled whilst inner rows are switched on occupancy only. • Occupancy and lux control of a lighting circuit and just occupancy control of a ventilation circuit. • Occupancy on both lighting circuits, with separate lux control on each circuit.
