Avenue F2

  • Avenue F2
  • Avenue F2

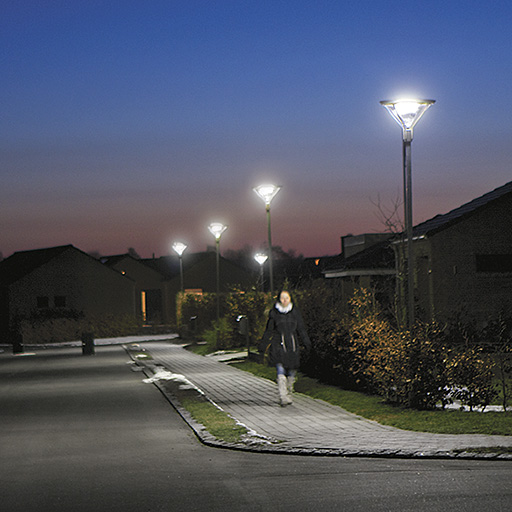

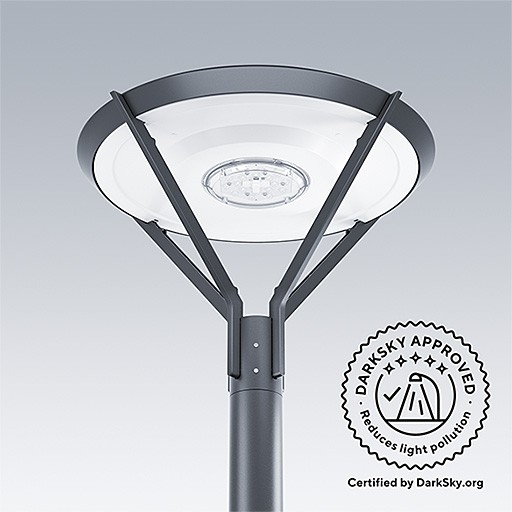

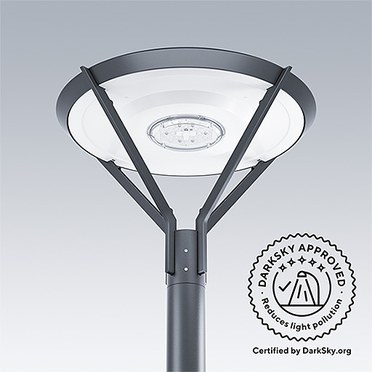

Timeless post top decorative lantern for urban and residential streets

  • Choice between asymmetrical and symmetrical light distribution
  • High performance street optic, optimised for Cosmopolis and metal halide lamps, providing a good colour rendering and optimised spacings
  • Dimming and Telea management options to optimise energy consumptions
  • Complete family with coordinated columns and wall version

Materials and Finish

Base and arms: die cast aluminium (LM6)
Canopy: spun aluminium
Finish: powder coated dark sandy grey 900 (close to RAL7043) for external parts, white RAL9016 for inner parts
Diffuser: clear UV stabilised PC with sand blasted anti glare band for symmetrical conventional version or without for other variants
Reflector (street distribution): high reflective anodised aluminium
Screw fixings: stainless steel

Installation and Mounting

Post top mounting, spigot Ø60mm (length: 75mm) or UK Ø76mm (length: 100mm). Recommended height: 3/4m. Dedicated range of columns and brackets. Access to lamps and gear via 3 screws below the bowl. Pre-wired versions available with connector or 4m HO5 VVF cable. Delivered ready to install, complete with factory fitted integral gear, all supplied in one carton.

Specification

To specify state:
IP66 post top decorative aluminium lantern for 26/32/42W TC-TEL, 50/70/100W HSE/HST, 35/70/100W HIE, 45/60/90W HIT-CE lamps, powder coated dark grey finish, with street or symmetrical optics, dimming and Telea management and coordinated decorative columns.
As Thorn Avenue F2.

New Product
LumExpress Product
eControl Product

Avenue F2 with conventional gear

Avenue F2 With conventional gear, street optic

Description   Catalogue No.TypeSocketWt (kg)SAP Code
AVENUE F2 70W HIT-CE E27 CL1 STR D76 LIAUF70SMTE279.1096260038
AVENUE F2 70WHIT-CE E27 CL1 PM STRD76 LIAUF70MSMTE279.2096260039

Avenue F2 with electronic gear

Description   Catalogue No.TypeSocketWt (kg)SAP Code
AVENUE F2 42W TC-TEL CL1 D76 LIAUF42FSMGX24q-48.9096260129

Avenue F2 With electronic gear, street optic

Description   Catalogue No.TypeSocketWt (kg)SAP Code
AVENUE F2 45W CPO CL1 PM STR D76 LIAUF45ZMSMTPGZ129.1096260041
AVENUE F2 60W CPO CL1 PM STR D76 LIAUF60ZMSMTPGZ129.2096260043
AVENUE F2 60W CPO CL1 STR D76 LIAUF60ZSMTPGZ129.1096260042
AVENUE F2 90W CPO CL1 STR D76 LIAUF90ZSMTPGZ129.2096260044
AVENUE F2 90W CPO CL1 STR D76 PM LIAUF90ZMSMTPGZ129.3096260045

Avenue F2 With power reduction and controls

Description   Catalogue No.SocketWt (kg)SAP Code
AVENUE F2 70W/BP7 HIE-CE E27 CL1 D76 LIAUF70B7E278.8096260030

Avenue F2 With power reduction and controls, street optic

Description   Catalogue No.TypeSocketWt (kg)SAP Code
AVENUE F2 60W CPO/BP8 CL1 PM STR D76 LIAUF60B8MSMTPGZ129.2096260047
AVENUE F2 70/BP HIT-CE E27CL1 STR D76 LIAUF70B7SMTE278.6096260046
AVENUE F2 90W CPO/BP8 CL1 PM STR D76 LIAUF90B8MSMTPGZ129.3096260048

Avenue F2 Accessory

Description   Catalogue No.Wt (kg)SAP Code
AVENUE F2 LVBACKAUFBLV0.0696260131
