Oxane

  • Oxane
  • Oxane

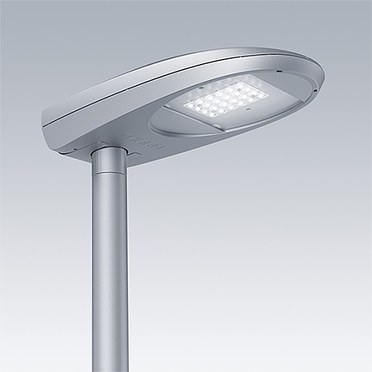

A stylish road lantern at the forefront of LED technology designed to deliver excellent lighting and through-life performance

  • High efficiency road lighting lantern available in several ratings from 15W (1300 lm) to 85W (7000 lm) covering lighting classes up to ME3
  • Highly efficient road lantern available in two light distributions and different ratings to offer best combination to any road type
  • Modularity allows through-life performance improvements by
    simply changing the optical engine and driver as more efficient
    systems emerge
  • Minimal and easy maintenance with a long 90,000-hour lifetime,
    self-cleaning shape, wide and tool-free canopy opening, and fully
    removable gear

Materials and Finish

Body & spigot: die-cast aluminium, powder coated texturised light grey (close to RAL9006)
Enclosures: toughened glass, self cleaning treatment on request
Screws: stainless steel

Installation and Mounting

Rotating spigot secured by 2 screws with safety bolts. Post-top mounting: Ø60/76 mm x 80 mm long spigot. Tilted to 5°. Lateral mounting: CL1 - Ø34/42/49/60 mm x 120mm / CL2 - Ø49/60 mm x 120 mm long spigot. Tilted to 0°. Cable gland for Ø8-13 mm cable. Delivered ready to install in 1 box.

Specification

To specify state:
Easy to install and maintain LED luminaire designed to offer effective and reliable lighting performances with combined thermal and optical system. Suitable for main road lighting applications.
As Thorn Oxane.

New Product
LumExpress Product
eControl Product

Oxane S Flat glass, narrow road distribution

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
OXANE S 24L35 NR EFL 740 CL1283218OXS26INLED6.8596265559
OXANE S 24L50 NR EFL 740 CL1384398OXS39INLED6.7696265565
OXANE S 24L70 NR EFL 740 CL1535846OXS56INLED6.7896265571
OXANE S 36L35 NR EFL 740 CL1394809OXS38INLED6.7896265595
OXANE S 36L50 NR EFL 740 CL1556555OXS58INLED6.7896265601
OXANE S 36L70 NR EFL 740 CL1778675OXS84INLED6.7896265607

Oxane S Flat glass, narrow road distribution, photocell

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
OXANE S 24L35 NR EFL 740 CL1 PM283218OXS26MINLED6.7696265560
OXANE S 24L50 NR EFL 740 CL1 PM384398OXS39MINLED6.7696265566
OXANE S 24L70 NR EFL 740 CL1 PM535846OXS56MINLED6.7896265572
OXANE S 36L35 NR EFL 740 CL1 PM394809OXS38MINLED6.8796265596
OXANE S 36L50 NR EFL 740 CL1 PM556555OXS58MINLED6.8796265602
OXANE S 36L70 NR EFL 740 CL1 PM778675OXS84MINLED6.8796265608

Oxane S Flat Glass, narrow road distribution, bi-power

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
OXANE S 12L50 BP SW NR EFL 740 CL1212209OXS20B8INLED6.4596265537
OXANE S 12L70 BP SW NR EFL 740 CL1282945OXS28B8INLED6.3696265542
OXANE S 24L35 BP NR EFL 740 CL1283218OXS26B8INLED6.8596265562
OXANE S 24L50 BP NR EFL 740 CL1384398OXS39B8INLED6.7696265568
OXANE S 24L70 BP NR EFL 740 CL1535846OXS56B8INLED6.7896265574
OXANE S 36L35 BP NR EFL 740 CL1394809OXS38B8INLED6.7896265598
OXANE S 36L50 BP NR EFL 740 CL1556555OXS58B8INLED6.7896265604
OXANE S 36L70 BP NR EFL 740 CL1778675OXS84B8INLED6.7896265610

Oxane S Flat Glass, narrow road distribution, bi-power, photocell

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
OXANE S 12L35 BP SW NR EFL 740 CL1 PM151613OXS14B8MINLED6.4796265533
OXANE S 12L50 BP SW NR EFL 740 CL1 PM212209OXS20B8MINLED6.3496265538
OXANE S 12L70 BP SW NR EFL 740 CL1 PM282945OXS28B8MINLED6.3496265543
OXANE S 24L35 BP NR EFL 740 CL1 PM283218OXS26B8MINLED6.7696265563
OXANE S 24L50 BP NR EFL 740 CL1 PM384398OXS39B8MINLED6.7896265569
OXANE S 24L70 BP NR EFL 740 CL1 PM535846OXS56B8MINLED6.7496265575
OXANE S 36L35 BP NR EFL 740 CL1 PM394809OXS38B8MINLED6.8796265599
OXANE S 36L50 BP NR EFL 740 CL1 PM556555OXS58B8MINLED6.8796265605
OXANE S 36L70 BP NR EFL 740 CL1 PM778675OXS84B8MINLED6.8796265611

Oxane S Shallow glass, wide street distribution

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
OXANE S 24L50 WS GL 740 CL1384472OXS39EXLED6.7496265577
OXANE S 24L70 WS GL 740 CL1535944OXS56EXLED6.7896265589
OXANE S 36L35 WS GL 740 CL1394890OXS38EXLED6.8796265613
OXANE S 36L50 WS GL 740 CL1556665OXS58EXLED6.8796265619
OXANE S 36L70 WS GL 740 CL1778821OXS84EXLED6.8796265625

Oxane S Shallow glass, wide street distribution, photocell

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
OXANE S 24L35 WS GL 740 CL1 PM283272OXS26MEXLED6.7496265578
OXANE S 24L50 WS GL 740 CL1 PM384472OXS39MEXLED6.7896265584
OXANE S 24L70 WS GL 740 CL1 PM535944OXS56MEXLED6.8796265590
OXANE S 36L35 WS GL 740 CL1 PM394890OXS38MEXLED6.7896265614
OXANE S 36L50 WS GL 740 CL1 PM556665OXS58MEXLED6.7896265620
OXANE S 36L70 WS GL 740 CL1 PM778821OXS84MEXLED6.7896265626

Oxane S Shallow glass, wide street distribution, bi-power

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
OXANE S 12L35 BP SW WS GL 740 CL1151641OXS14B8EXLED6.3696265547
OXANE S 12L50 BP SW WS GL 740 CL1212246OXS20B8EXLED6.3696265551
OXANE S 12L70 BP SW WS GL 740 CL1282994OXS28B8EXLED6.3696265555
OXANE S 24L35 BP WS GL 740 CL1283272OXS26B8EXLED6.7496265580
OXANE S 24L50 BP WS GL 740 CL1384472OXS39B8EXLED6.7896265586
OXANE S 24L70 BP WS GL 740 CL1535944OXS56B8EXLED6.7896265592
OXANE S 36L35 BP WS GL 740 CL1394890OXS38B8EXLED6.8796265616
OXANE S 36L50 BP WS GL 740 CL1556665OXS58B8EXLED6.8796265622
OXANE S 36L70 BP WS GL 740 CL1778821OXS84B8EXLED6.8796265628

Oxane S Shallow glass, wide street distribution, bi-power, photocell

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
OXANE S 12L35 BP SW WS GL 740 CL1 PM151641OXS14B8MEXLED6.3696265548
OXANE S 12L50 BP SW WS GL 740 CL1 PM212246OXS20B8MEXLED6.3696265552
OXANE S 12L70 BP SW WS GL 740 CL1 PM282994OXS28B8MEXLED6.3696265556
OXANE S 24L35 BP WS GL 740 CL1 PM283272OXS26B8MEXLED6.7896265581
OXANE S 24L50 BP WS GL 740 CL1 PM384472OXS39B8MEXLED6.7896265587
OXANE S 24L70 BP WS GL 740 CL1 PM535944OXS56B8MEXLED6.8596265593
OXANE S 36L35 BP WS GL 740 CL1 PM394890OXS38B8MEXLED6.7896265617
OXANE S 36L50 BP WS GL 740 CL1 PM556665OXS58B8MEXLED6.7896265623
OXANE S 36L70 BP WS GL 740 CL1 PM778821OXS84B8MEXLED6.7896265629
