Durolight / DUROLIGHT-S 4000-830 HFIX L1350

96633067

Data Sheet

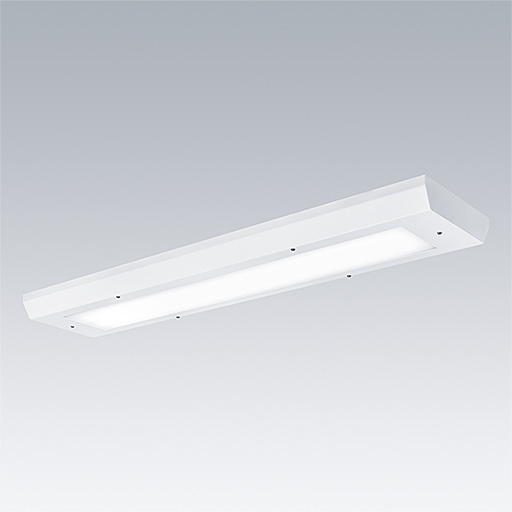

Anti-vandal Surface mounted LED luminaire. Electronic, DALI dimmable control gear. IP65, IK10, Class I electrical. Body: 2mm steel sheet painted white (close to RAL9016). Gasket: non-ageing polyurethane foam. Diffuser: 3mm thick polycarbonate with outstanding impact resistance, connected and secured with tamper-resistant stainless steel twin hole screws to the body. Complete with 3000K LED

Dimensions: 1350 x 290 x 66 mm
Luminaire input power: 37.6 W
Luminaire luminous flux: 3965 lm
Luminaire efficacy: 105 lm/W
Weight: 15 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3965 lm
  • Luminaire efficacy*:105 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Ballast:1x EL2 Tridonic LCA
  • Luminaire input power*:37.6 W Power factor = 0.96
  • Standby Power*:0.15 W
  • Dimming:DA2
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • LED
  • CE
  • GLedNr
  • 850°
  • IK10
  • IP65
  • LLedNr
  • SC1
  • SF_170
  • Ta-25-50

Photometry

Photometric configuration

CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
