  • Voyager Star — VOYAGER STAR KIT SPOT E3

Voyager Star / VOYAGER STAR KIT SPOT E3

96548969 / VYLEDSMKIT

▼ Data Sheet

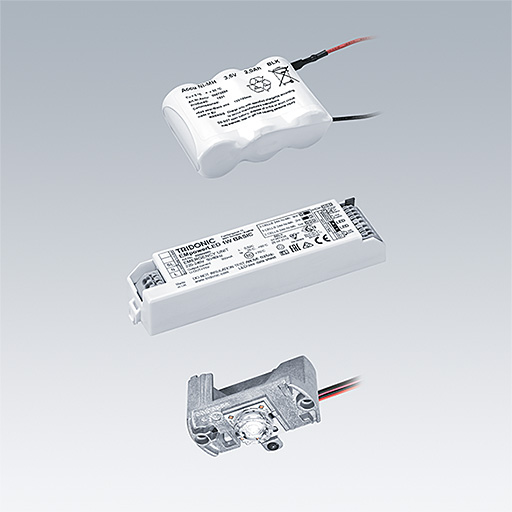

High performance, LED emergency lighting kit for incorporation into a suitable housing (not supplied), with spot lighting optic.. Lens: polycarbonate. Optimum thermal management via heat sink. Complete with LEDs..

Luminaire input power: 4 W
Weight: 0.5 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:190 lm
  • Total emergency luminous flux:190 lm
  • Luminaire efficacy*:48 lm/W
  • Lamp efficacy:47 lm/W
  • Ballast:1 x 89899865 EM POWER LED 1W BASIC CLIP-FIX
  • Rated median useful life*: 50000h at 25°C
  • Luminaire input power*:4 W Power factor = 0.51
  • Standby Power*:0.9 W
  • Charging power:0.7 W
  • LED
  • CE

▼ Photometry

Photometric configuration
